35 Stations Force Feeder Rotary Tablet Press Machine For Pharmacy
35 Stations Force Feeder Rotary Tablet Press Machine For Pharmacy Quick Details:
- high output 150,000 tablets per hour
- adopt TSM type, EU type or Chinese type tooling
- working stable and easy operation
35 Stations Force Feeder Rotary Tablet Press Machine For Pharmacy Application
This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.
This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
35 Stations Force Feeder Rotary Tablet Press Machine For Pharmacy Feature
- Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
- Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
- PLC and touch screen control, speed adjustable by frequency inverter, all the running parameter can be set and shown.
- With high main-pressure and pre-pressure, extending the pressing time and making good quality tablets.
- Hydraulic overload protection device is equipped, the machine can stop automatically in case of overpressure to protect the punch pins from being damaged.
- ZP39i is upgraded model from ZP35B, its output is increased about 15% more than ZP35B.
- Force feeder is optional on the machine.
35 Stations Force Feeder Rotary Tablet Press Machine For Pharmacy Technical Parameters:
| Model | ZP39i | ZP37B | ZP35B |
| Number of Stations | 39 | 37 | 35 |
| Tooling Standard | ZP |
| Max Main Pressure (KN) | 80 |
| Max Pre-pressure (KN) | 10 |
| Max Tablet Diameter (mm) | round tablet | 13 |
| irregular tablet | 16 |
| Max Filling Depth (mm) | 15 |
| Max Tablet Thickness (mm) | 6 |
| Max Turret Speed (r/min) | 36 |
| Max Production Capacity (pcs/h) | 168000 | 160000 | 151200 |
| Motor Power (kw) | 4 |
| Overall Size (mm) | 1160×1070×1720 |
| Machine Weight (kg) | 2000 |

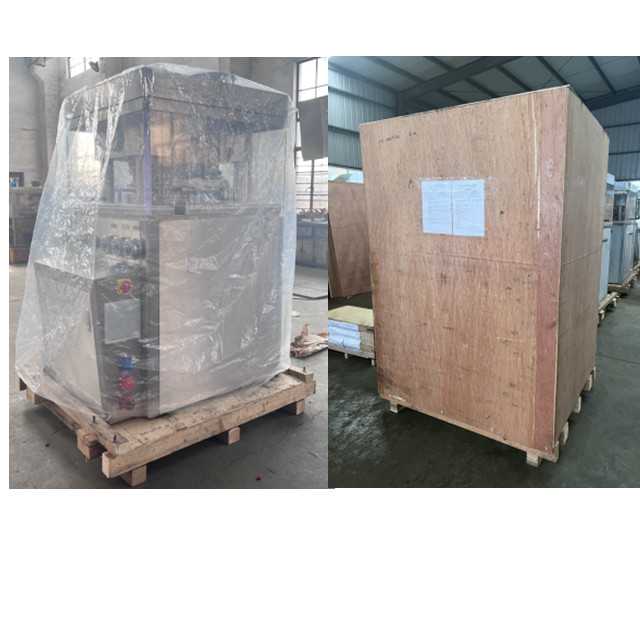

Packing
Our company:
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. Is a professional manufacturer to produce like tablet press machine, packing machine in Pharmaceutical & Foods industry over 30 years, exported more than 70 countries. And our products with (Certificate, like CE, ISO) approved.
Our products are of good quality and reputation. All customers have been quite satisfied with our products. We have established long-term business relations with many customers. Our products are exported to many countries & areas, such as the USA, Australia, Canada, the UK, Spain, Hungary,Russia,Germany, Sweden, Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, , South Africa, Nigeria, t, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
Our services
Pre-sales service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer’s needing in advance.
3.Testing the machine and making video for customer’s checking.
After-sale service:
1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customer's question on technology in time.
